Machining Center MU-650

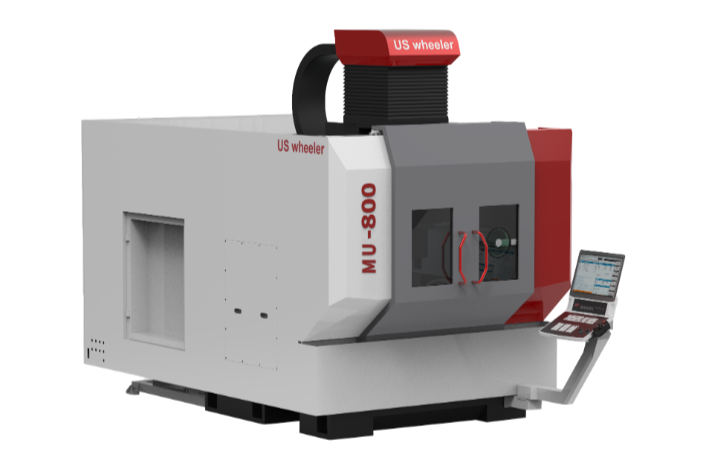

Machining Center MU-800

Machining Center VTU-400

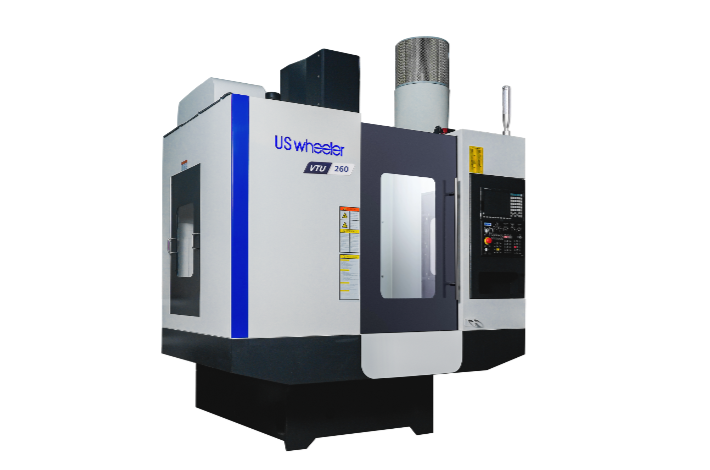

Machining Center VTU-260

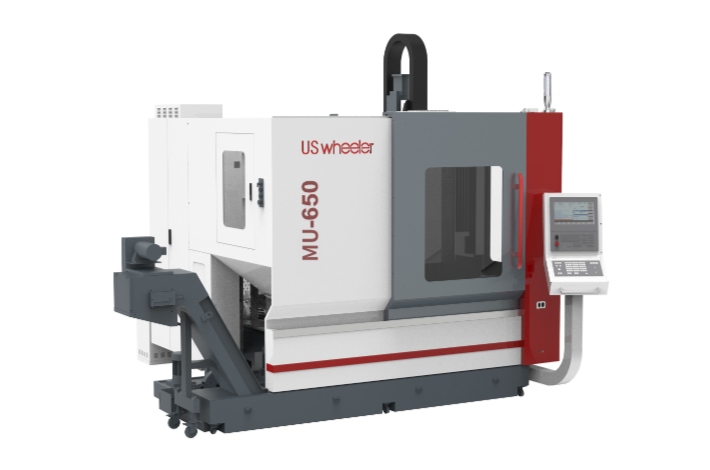

Machining Center MU-650

The MU Series machining center is suitable for processing various milling parts and complex curved surface parts, completing milling, drilling, boring, reaming, tapping and other multi-process processing. The machine tool has high rigidity and high precision, and has good thermal stability, long-term precision retention and excellent shock absorption.

It is widely used in parts and mold processing in the automotive and motorcycle parts, molds, ships, and other industries. The five axis CNC rotary table can expand the processing of multi-angle parts and gear and cam parts.

Consult immediately

Parameter Specifications

Machining Center MU-650

Vertical machining center

Specifications

Processing Capacity

X axis Travel(mm)

820

Y axis Travel(mm)

520

Z axis Trave(mm)

500

Distance from Spindle surface to Table ((mm)

150 -650
Spindle

Drive Type

Motorized Drive

Max. Speed(rpm)

12000
Main Motor

Power (kW)

11/15

Max. Torque(Nm)

118

Spindle Taper

BT-40
Others

L*W*H(mm)

3150*2920*3200

Weight(kg)

12500
