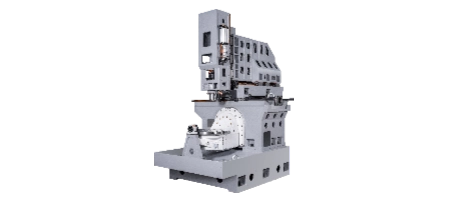

Horizontal X-axis

820mm(Left limit ：500mm，Right limit：320mm)

Longitudinal Y-axis

520mm

Vertical Z-axis

500mm

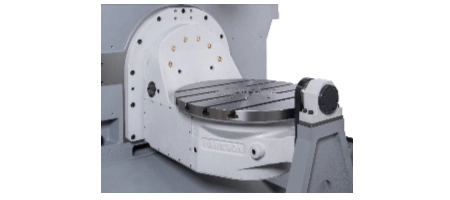

B-axis

±110°

C-axis

360°

Distance from spindle end face to worktable

150-650mm

Distance from spindle center to guide rail surface

187mm

Distance from table to ground

900mm

Table size

∅650mm

Max processing range

∅650×380mm

Center hole diameter

∅55H7mm

Table height (to B-axis center)

-50mm

Maximum load-bearing capacity

300Kg

T-slot (quantity-spacing-width)

5-100-18H7mm

Drive mode

Direct drive

Spindle speed

12000r/min

Main motor power

9KW

Spindle torque

135Nm

Taper and specifications of spindle

BT-40

X、Y、Zrapid traverse speed

24/24/24m/min

Drive mode of X/Y/Z-axis servo motor

Direct drive

Speed of X/Y/Z-axis servo motor

2500/2500/2500rpm

Diameter of X/Y/Z-axis screw

∅40/∅40/∅40mm

Pitch of X/Y/Z-axis screw

12/12/12mm

Cutting feed rate

1-10000mm/min

Min feed rate

0.001mm

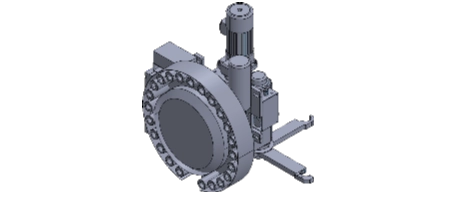

Drive mode

Turbo worm

Max rotation speed B/C

25/25rpm

Indexing accuracy B/C

45”/15”sec.

RepeatabilityB/C

6”/6”sec.

Min input unit

0.001°

Hydraulic braking pressure

5MPa

Brake locking force B/C

2630/1690Nm

Tool magazine capacity

No.24

Tool magazine type

ATC tool magazine

Shank specification

BT-40

Tool handle nail puller

45°

Max tool diameter (w/ adjacent tools)

Φ80mm

Max tool diameter (w/o adjacent tools)

Φ150mm

Max tool length

300mm

Max tool weight

8Kg

Tool change time (tool to tool)

2.5/3Sec

Positioning accuracy

±0.005mm

Repeatability

±0.003mm
