EX2003 Low Air Pressure Alarm
  • 2003 (A10.3)
  • Low air pressure.

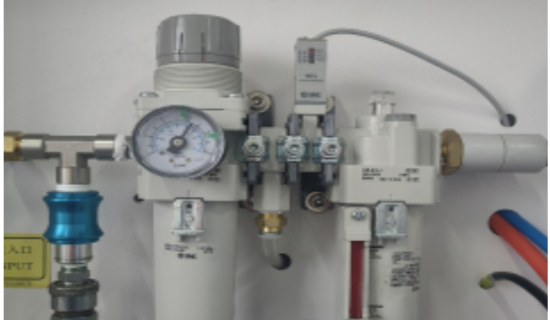

  • 1. Check the air pressure system. 2. After a normal air pressure is built up, press the “PROGRAM START” button to continue the processing, or press the “RESET” button to deactivate the alarm.

1. The low air pressure alarm will be activated if the air pressure drops below 0.3MPa. 2. Tool jamming will occur during tool change if the air pressure is lower than 0.4MPa.

notice:
The air pressure shall be 0.6~0.8MPa
