Vertical drilling and tapping center DT800

The machine takes the vertical frame construction, ensuring a compact structure. Its herringbone-shaped column with high rigidity, robust saddle and wide base enable the machine to handle heavy loads during operation, and avoid vibration and deformation d

It is suitable for machining accessories of automobiles, motorcycles and small generators.

Consult immediately

Model Highlights

High-rigidity mechanical structure

High-speed and high-efficiency ATC

Screw

Parameter Specifications

Item

Vertical drilling and tapping center DT800

Specifications

Travel

Horizontal X-axis

800mm

Longitudinal Y-axis

500mm

Vertical Z-axis

330mm

Distance from spindle end face to worktable

160-490mm

Distance from spindle center to column rail surface

546mm
Worktable

Worktable size

1000*500mm

T-slot quantity/size/spacing

5*18*100

Maximum loading capacity

300kg
Spindle

Spindle speed

50-20000rpm

Drive mode

直联驱动

Spindle motor torque (rated/maximum)

11.8/28.7Nm

Main motor power

3.7/5.5kw
Servo axis

X/Y/Z rapid traverse speed

48/48/48m/min

Cutting feed rate

1-10000mm/min
Tool magazine

Tool magazine type

Reversible servo tool magazine with 21 tools (26 tools)

Shank specification

BT-30
Main accuracy

Positioning accuracy

0.008mm

Repeatability

0.004mm
Others

Machine footprint and height

2480*2540*2440mm

Machine weight (apx.)

4300kg

CNC system

FANUC / MITSUBISHI

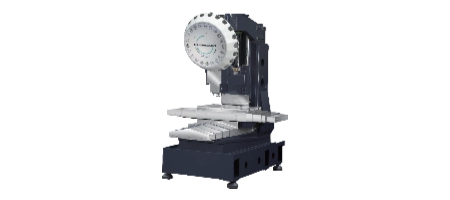

High-rigidity mechanical structure

IT300 advanced resin sand casting, herringbone-shaped column with large contact surface, and integrally molded ultra-wide base, improving the overall rigidity of the machine tool.
High-speed and high-efficiency ATC

BT30 spindle + high-efficiency servo tool changer, ensuring high-speed action and optimal exchange; Tool change time (T to T) down to 1.4 s; Tool change time (C to C) down to 1.9 s.

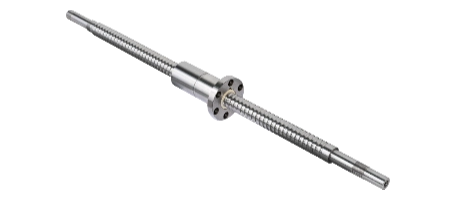

Screw

Screw subjected to precise pre-loading to enhance its rigidity and effectively reduce the impact of thermal expansion during use, well improving its service life and precision retaining ability.
