CNC Lathe LT210

The LT series CNC lathe is a kind of high-precision and high-efficiency automatic lathe equipped with a multi-station turret to provide extensive processing performance. It is also designed with such compensation functions as linear interpolation and circ

This series is mainly intended for machining various shafts and discs, as well as turning the internal and external curved surfaces of various threads, arcs, cones and rotors, with a capability to meet the speed requirements of high-speed cutting for both

Consult immediately

Model Highlights

Bed

Spindle

Guide rail

Parameter Specifications

Item

CNC Lathe LT210

Specifications

Machining capacity

Maximum swing over bed

510mm

Maximum turning diameter

320mm

Recommended turning diameter

210mm

Maximum turning length

500mm

Bar workpiece diameter

51mm

Distance from spindle center to ground

1050mm
Stroke

X travel

175mm

Z travel

510mm
Travel

Spindle speed

4500rpm

Spindle interface specification

A2-6

Main motor power (rated/maximum)

11/15kw

Spindle through hole diameter

66mm
Servo axis

X/Z rapid traverse speed

30/24m/min

Cutting feed rate

1-10000mm/min
Turret

Turret capacity

12 Station Bot

Boring bar diameter

40mm

Turret type

Servo turret + hydraulic locking
Tailstock

Tailstock type

Manual servo

Tailstock sleeve taper

MT-4
Main accuracy

Positioning accuracy

0.008mm

Repeatabilit

0.004mm
Others

Machine footprint and height

2570*2300*1750mm

Machine weight (apx.)

3200kg

CNC system

FANUC 0iTF(SIEMENS 828D)

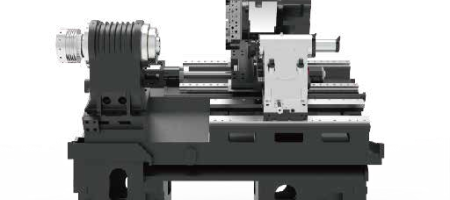

Bed

Overall inclined bed subject to finite element analysis, with stable center of gravity, high rigidity, high stability and outstanding precision retaining ability.

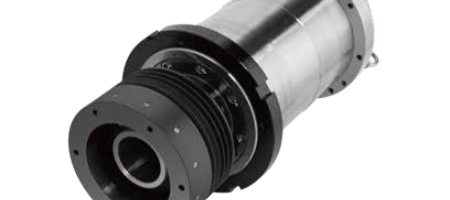

Spindle

Spindle manufactured under constant temperature, with the front end supported by an angular release bearing, and the rear end by a double-row roller bearing, enhancing both the rigidity and efficiency while reducing noise.

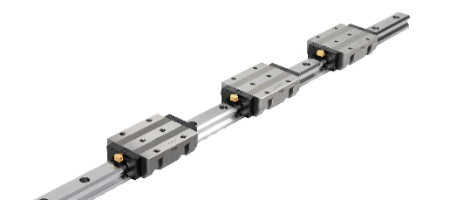

Guide rail

Ball guide rail able to withstand heavy loads and maintain stable accuracy over an extended period.
