CNC Lathe LT400L

The LT series CNC lathe is a kind of high-precision and high-efficiency automatic lathe equipped with a multi-station turret to provide extensive processing performance. It is also designed with such compensation functions as linear interpolation and circ

This series is mainly intended for machining various shafts and discs, as well as turning the internal and external curved surfaces of various threads, arcs, cones and rotors, with a capability to meet the speed requirements of high-speed cutting for both

Consult immediately

Model Highlights

Hard-rail bed

Programmable hydraulic tailstock

Heavy-duty turrets

Parameter Specifications

Item

CNC Lathe LT400L

Specifications

Machining capacity

Maximum swing over bed

790mm

Maximum turning diameter

600mm

Recommended turning diameter

380mm

Maximum turning length

2000mm

Bar workpiece diameter

115mm

Distance from spindle center to ground

1245mm
Stroke

X travel

340mm

Z travel

2100mm
Travel

Spindle speed

2000rpm

Spindle interface specification

A2-11

Main motor power (rated/maximum)

15/18.5kw

Spindle through hole diameter

127mm
Servo axis

X/Z rapid traverse speed

12/12m/min

Cutting feed rate

1-10000mm/min
Turret

Turret capacity

12 Station Bot

Boring bar diameter

60mm

Turret type

Turret type
Tailstock

Tailstock type

Programmable hydraulic tailstock

Tailstock sleeve taper

MT#6 live center
Main accuracy

Positioning accuracy

0.01/0.015mm

Repeatability

0.006/0.01mm
Others

Machine footprint and height

6550*2300*2520

Machine weight (approx.)

12000kg

CNC system

FANUC 0iTF(SIEMENS 828D)

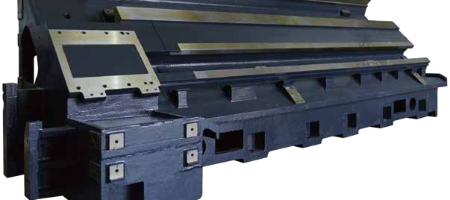

Hard-rail bed

The mature manufacturing and assembly technologies introduced from Taiwan are adopted, and all castings have been subject to finite element analysis and optimization, enabling both a high precision and a high stability for the machine tool. The bed adopts

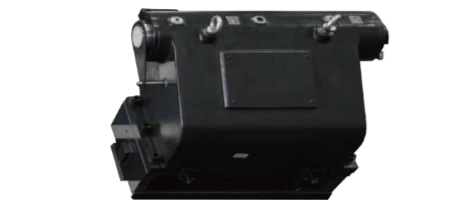

Programmable hydraulic tailstock

The hydraulic tailstock is extended and retracted through the tailstock center under the control of M code or pedal, and is dragged to move as a whole by the saddle. The relative position between the saddle and the tailstock is determined by a program, on

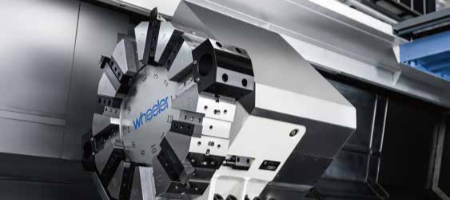

Heavy-duty turrets

A 12-station hydraulic turret which is suitable for heavy cutting is equipped as standard. A large tool disc is customized, improving the tool holder rigidity while reducing the interference area of tools.
