Transverse X-axis

1100mm

Vertical Y-axis

850mm

Longitudinal Z-axis

900mm

Distance from the spindle centerline to the worktable surface

100-950mm

Distance from the end face of the spindle to the center of the table

180-1080mm

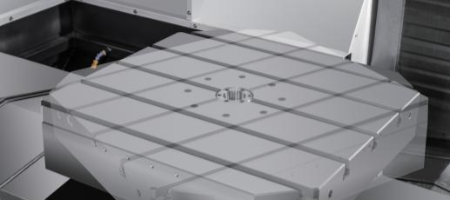

Worktable size

800*800mm

Worktable indexing

1°x360

Worktable maximum load

1500kg

Maximum swing diameter of the worktable

Φ1600

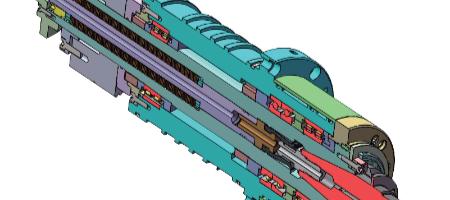

Spindle speed

50-6000rpm

Drive mode

Synchronous belt drive

Spindle motor torque

143/236Nm

Main motor power

15/18.5kw

X/Y/Z rapid traverse speed

24/24/24m/min

Cutting feed rate

1-10000mm/min

Tool magazine type

ATC刀库30把

Tool magazine specifications

BT-50

Positioning accuracy

0.012mm

Repeatability

0.008mm

Machine footprint and height

5215*4000*3100mm

Machine weight (approx.)

14000kg

CNC system

FANUC 0i MF PLUS
