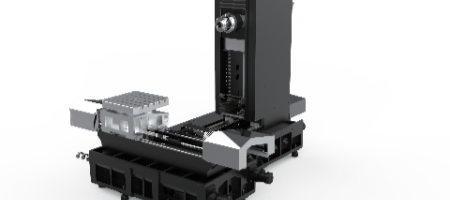

Horizontal Machining Center HM1000
Specifications
Transverse X-axis
1300mm
Vertical Y-axis
1000mm
Longitudinal Z-axis
1000mm
Distance from the spindle centerline to the worktable surface
120-1120
Distance from the end face of the spindle to the center of the table
200-1200
Worktable size
1000*1000

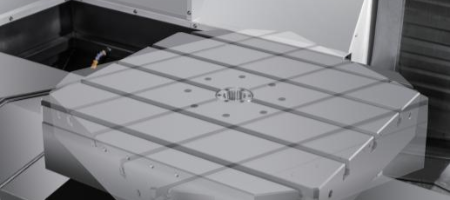

Worktable indexing
1°x360
Worktable maximum load
2000
Maximum swing diameter of the worktable
Φ1800

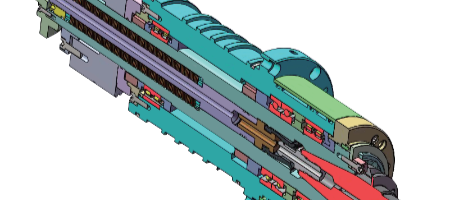

Spindle speed
50-6000rpm
Drive mode
Synchronous belt drive
Spindle motor torque (rated/maximum)
143/236
Main motor power
15/18.5kw
X/Y/Z rapid traverse speed
24/24/24m/min
Cutting feed rate
1-10000mm/min
Tool magazine type
ATC刀库30把
Tool magazine specifications
BT-50
Positioning accuracy
0.012mm
Repeatability
0.008mm
Machine footprint and height
5862*4350*3200
Machine weight (approx.)
18000kg
CNC system
FANUC 0i MF PLUS
