Horizontal Machining Center HM6300
The HM series high-rigidity roller guide horizontal machining center, which is designed based on the international advanced design concept, features inverted T-shaped bed, central head, moving column structure, large span, high rigidity and high strength,

This series is particularly suitable for rough and finish machining of various box-type parts; the high acceleration/deceleration feed shaft shortens the positioning time, and the application of mainstream machine tool systems including high-speed spindle
Model Highlights
Machining center
Spindle
Table
Parameter Specifications
  • Item

    Horizontal Machining Center HM6300

    Specifications

  • Travel

    Transverse X-axis

    1050mm

    Vertical Y-axis

    750mm

    Longitudinal Z-axis

    900mm

    Distance from the spindle centerline to the worktable surface

    120-870mm

    Distance from the end face of the spindle to the center of the table

    130-1030mm

  • Worktable

    Worktable size

    630*630mm

    Worktable indexing

    1°x360

    Worktable maximum load

    800kg

    Maximum swing diameter of the worktable

    Φ1200

  • Spindle

    Spindle speed

    50-6000rpm

    Drive mode

    Synchronous belt drive

    Spindle motor torque

    143/236Nm

    Main motor power

    15/18.5kw

  • Servo axis

    X/Y/Z rapid traverse speed

    24/24/24m/min

    Cutting feed rate

    1-10000mm/min

  • Tool magazine

    Tool magazine type

    ATC刀库30把

    Tool magazine specifications

    BT-50

  • Main accuracy

    Positioning accuracy

    0.01mm

    Repeatability

    0.006mm

  • Others

    Machine footprint and height

    5005*4000*2850mm

    Machine weight (approx.)

    12000kg

    CNC system

    FANUC 0i MF PLUS

Related recommendations
  • Machining center
    Inverted T structure: compact structure, high rigidity, high cost performance.

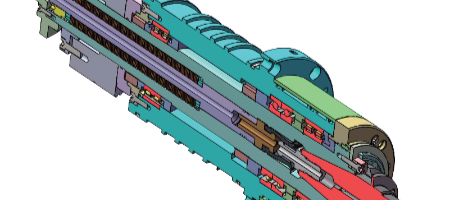

  • Spindle
    Spindle with large diameter, high-rigidity belt, and standard center water outlet.
  • Table
    High-precision rotary table with stable operation.
