X-axis travel

2000mm

Y-axis travel

1500mm

Z-axis travel

800mm

Distance from spindle end face to worktable

105-905mm

Gantry passing height

1030mm

Gantry width

1500mm

Worktable size

2100*1200mm

T-slot quantity/size/spacing

7*22*150

Maximum loading capacity

3500kg

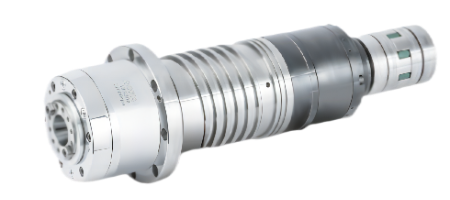

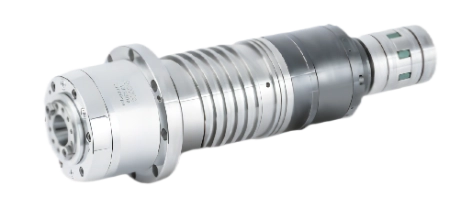

Spindle speed

50-12000rpm

Drive mode

Direct drive

Spindle motor torque (rated/maximum)

52.5/118Nm

Main motor power

11/15kw

X/Y/Z rapid traverse speed

15/15/15m/min

Cutting feed rate

1-10000mm/min

Counterbalance method

Nitrogen counterbalance

Minimum feed

0.001mm

Tool magazine type

ATC tool magazine (optional)

Shank specification

BT-40

Max tool length

300mm

Positioning accuracy（X/Y/Z）

0.015/0.012/0.012mm

Repeatability（X/Y/Z）

0.01/0.008/0.008mm

Machine footprint and height

5365*4065*3700

Machine weight (apx.)

13500kg

CNC system

FANUC 0iMF PLUS
