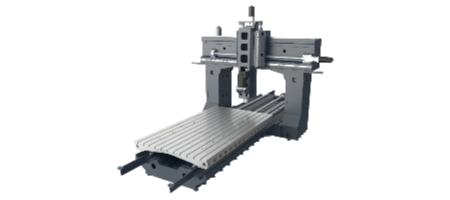

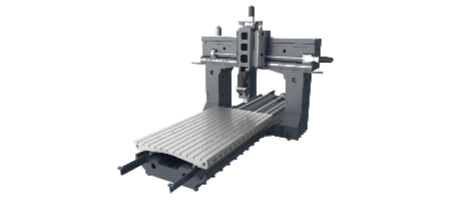

Gantry Machining Center LM6027
Specifications
X-axis travel
6000mm
Y-axis travel
2700(full travel 3050)mm
Z-axis travel
1000mm
Distance from spindle end face to worktable
280-1280mm
Gantry passing height
1400mm
Gantry width
2700mm
Worktable size
6000*2300mm
T-slot quantity/size/spacing
11*28*200
Maximum loading capacity
18000kg

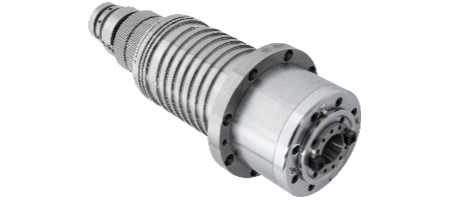

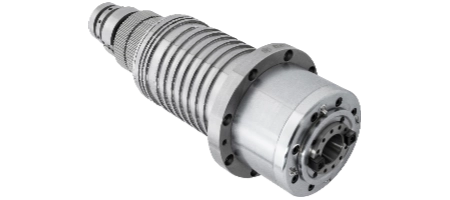

Spindle speed
50-6000rpm
Drive mode
Synchronous belt drive
Spindle motor torque (rated/maximum)
140/223N·m
Main motor power
22/26Kw
X/Y/Z rapid traverse speed
10/10/10m/min
Cutting feed rate
1-8000mm/min
Counterweight method
Nitrogen counterweight
Minimum feed
0.001mm
Tool magazine type
ATC tool magazine (optional)
Shank specification
BT-50
Maximum tool length
300mm
Positioning accuracy(X/Y/Z)
0.035/0.018/0.015mm
Repeatability(X/Y/Z)
0.02/0.012/0.01mm
Machine tool footprint and height
14300*5760*5050
Machine tool weight(apx.)
54000kg
CNC system
FANUC 0iMF PLUS
