X-axis travel

4000mm

Y-axis travel

2700（full travel 3050）mm

Z-axis travel

1000mm

Distance from spindle end face to worktable

280-1280mm

Gantry passing height

1400mm

Gantry width

2700mm

Worktable size

4000*2300mm

T-slot quantity/size/spacing

11*28*200

Maximum loading capacity

12000kg

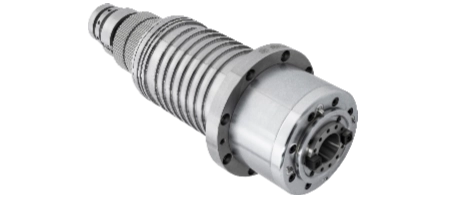

Spindle speed

50-6000rpm

Drive mode

Belt drive

Spindle motor torque (rated/maximum)

140/223N·m

Main motor power

22/26Kw

X/Y/Z rapid traverse speed

10/10/10m/min

Cutting feed rate

1-8000mm/min

Counterbalance method

Nitrogen counterweight

Minimum feed

0.001mm

Tool magazine type

ATC tool magazine (optional)

Shank specification

BT-50

Max tool length

300mm

Positioning accuracy（X/Y/Z）

0.02/0.018/0.015mm

Repeatability（X/Y/Z）

0.015/0.012/0.01mm

Machine footprint and height

10300*5760*5050mm

Machine weight (apx.)

42000kg

CNC system

FANUC 0iMF PLUS
