X-axis travel

5000mm

Y-axis travel

2200(副行程2700)mm

Z-axis travel

1000mm

Distance from spindle end face to worktable

280-1280mm

Gantry passing height

1400mm

Gantry width

2300mm

Worktable size

5000*2000mm

T-slot quantity/size/spacing

9*28*200

Maximum loading capacity

14000kg

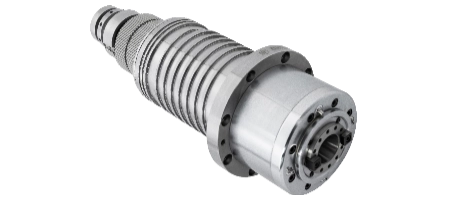

Spindle speed

50-6000rpm

Drive mode

Belt drive

Spindle motor torque (rated/maximum)

140/223N·m

Main motor power

22/26Kw

X/Y/Z rapid traverse speed

10/12/10m/min

Cutting feed rate

1-8000mm/min

Counterbalance method

Nitrogen counterbalance

Minimum feed

0.001mm

Tool magazine type

ATC tool magazine (optional)

Shank specification

BT-50

Max tool length

300mm

Positioning accuracy（X/Y/Z）

0.025/0.018/0.015mm

Repeatability（X/Y/Z）

0.018/0.012/0.01mm

Machine footprint and height

11830*5200*5370

Machine weight (apx.)

43000kg

CNC system

FANUC 0iMF PLUS
