Gantry Machining Center LM8032
This series, featuring high rigidity, and flexible and convenient operation, is suitable for machining box-type parts, large sheet metal parts and molds, and supports multiple processes of parts such as milling, boring, drilling (drilling, expanding, ream

This series is widely applied in automotive, construction machinery, home appliance mold and mold base processing industries and other industries, and is also suitable for machinery manufacturing industry and other manufacturing industries.
Model Highlights
High-rigidity structure
Spindle
Linear guides and ball screws.
Parameter Specifications
  • Item

    Gantry Machining Center LM8032

    Specifications

  • Travel

    X-axis travel

    8000mm

    Y-axis travel

    3200(full travel 3800)mm

    Z-axis travel

    1250mm

    Distance from spindle end face to worktable

    300-1550mm

    Gantry passing height

    1730mm

    Gantry width

    3200mm

  • Worktable

    Worktable size

    8000*2500mm

    T-type quantity/size/spacing

    11*28*200(两侧2*28*180)

    Maximum load-bearing capacity

    30000kg

  • Spindle

    Spindle speed

    50-6000rpm

    Drive mode

    Belt drive

    Spindle motor torque (rated/maximum)

    140/223N·m

    Main motor power

    22/26Kw

  • Servo axis

    X/Y/Z rapid traverse speed

    8/10/10m/min

    Cutting feed rate

    1-6000mm/min

    Counterweight method

    Nitrogen counterweight

    Minimum feed

    0.001mm

  • Tool/tool magazine

    Tool magazine type

    ATC tool magazine (optional)

    Shank specification

    BT-50

    Maximum tool length

    300mm

  • Main accuracy

    Positioning accuracy(X/Y/Z)

    0.045/0.025/0.018mm

    Repeatability(X/Y/Z)

    0.025/0.015/0.012mm

  • 其他

    机床占地面积及高度

    20300*6970*5470

    机床重量(约)

    97000kg

    数控系统

    FANUC 0iMF PLUS

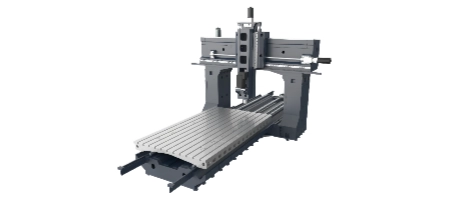

  • High-rigidity structure
    1,大截面横梁,导轨阶梯式布置,减小Z轴前倾,提高Z轴切削稳定性 2,大跨距床身,工作台全行程支撑,减小悬伸变形 3,工作台采用双层箱型封闭式结构,工作台重负荷变形小 4,Z轴平衡配重,减小Z轴负载,提高运动响应性,延长丝杆寿命

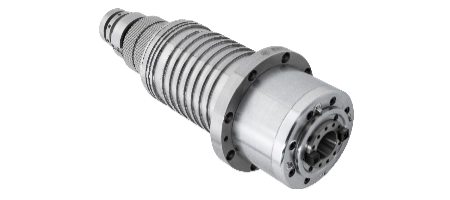

  • Spindle
    T50 large steel ball high-rigidity precision spindle.

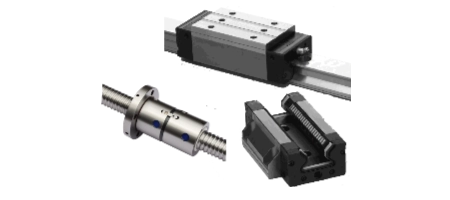

  • Linear guides and ball screws.
    High-rigidity roller linear guides, C3 grade precision ground ball screws, ensuring motion rigidity and accuracy.
