X-axis travel

2500mm

Y-axis travel

1800（full travel 2000）mm

Z-axis travel

1000mm

Distance from spindle end face to worktable

145-1145mm

Gantry passing height

1300mm

Gantry width

1800mm

Worktable size

2500*1600mm

T-slot quantity/size/spacing

9*22*180

Maximum loading capacity

7000kg

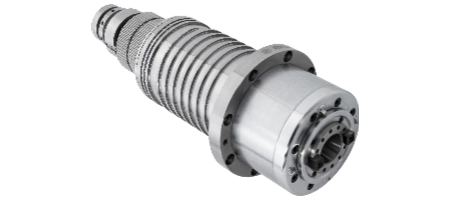

Spindle speed

50-6000rpm

Drive mode

Belt drive

Spindle motor torque (rated/maximum)

143/236Nm

Main motor power

15/18.5kw

X/Y/Z rapid traverse speed

12/15/10m/min

Cutting feed rate

1-10000mm/min

Counterbalance method

Nitrogen counterbalance

Minimum feed

0.001mm

Tool magazine type

ATC tool magazine (optional)

Shank specification

BT-50

Max tool length

300mm

Positioning accuracy（X/Y/Z）

0.015/0.012/0.012mm

Repeatability（X/Y/Z）

0.01/0.008/0.008mm

Machine footprint and height

7040*4470*4890

Machine weight (apx.)

26000kg

CNC system

FANUC 0iMF PLUS
