Horizontal X-axis

1100mm

Longitudinal Y-axis

600mm

Vertical Z-axis

600mm

Distance from spindle end face to worktable

120-720mm

Distance from spindle center to column rail surface

650mm

Worktable size

1200*600mm

T-slot quantity/size/spacing

5*18*100

Maximum loading capacity

800kg

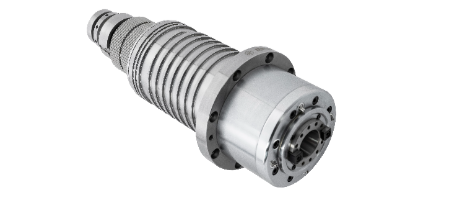

Spindle speed

50-8000rpm

Drive mode

Synchronous belt drive

Spindle motor torque (rated/maximum)

52.5/118Nm

Main motor power

11/15kw

X/Y/Z rapid traverse speed

36/36/36m/min

Cutting feed rate

1-10000mm/min

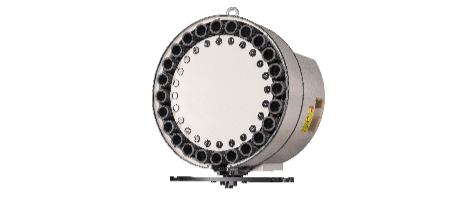

Tool magazine type

ATC tool magazine with 24 tools {30 tools}

Shank specification

BT-40

Positioning accuracy

0.008mm

Repeatability

0.004mm

Machine footprint and height

2900*2400*3000

Machine weight (apx.)

6500kg

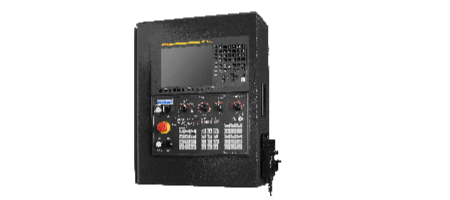

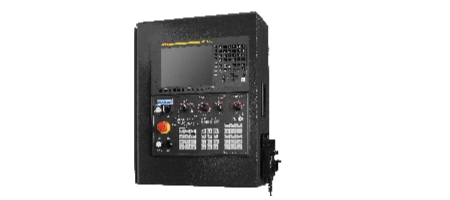

CNC system

FANUC 0iMF PLUS
