Vertical machining center EM1100Z

This series of machine tools, featuring high overall rigidity, convenient and flexible operation, and fully-enclosed protection, is suitable for machining box-type parts as well as various complex two-dimensional and three-dimensional molds

It is widely applied to the machining of parts and molds characterized by multiple processes, high precision and high efficiency in automotive, mold, and may be provided with a rotation axis to accommodate the machining

Consult immediately

Model Highlights

Rotary control panel

High-speed ATC

Spindle

Parameter Specifications

Item

Vertical machining center EM1100Z

Specifications

Travel

Horizontal X-axis

1100mm

Longitudinal Y-axis

600mm

Vertical Z-axis

600mm

Distance from spindle end face to worktable

80-680mm

Distance from spindle center to column rail surface

635mm
Worktable

Worktable size

1200*600mm

T-slot quantity/size/spacing

5*18*100

Maximum loading capacity

800kg
Servo axis

X/Y/Z rapid traverse speed

36/36/20m/min

Cutting feed rate

1-10000mm/min
Spindle

Spindle speed

50-6000rpm

Drive mode

Synchronous belt drive

Spindle motor torque (rated/maximum)

143/236Nm

Main motor power

15/18.5kw
Tool magazine

Tool magazine type

ATC tool magazine with 24 tools

Shank specification

BT-50
Main accuracy

Positioning accuracy

0.008mm

Repeatability

0.004mm
Others

Machine footprint and height

3060*2400*3000mm

Machine weight (apx.)

6500kg

CNC system

FANUC 0iMF PLUS

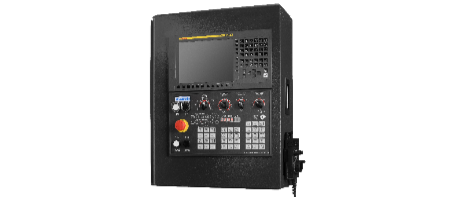

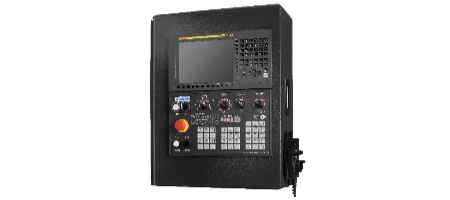

Rotary control panel

Rotary control panel with a rotation of 0-60 degrees for enhanced operation convenience and visibility.

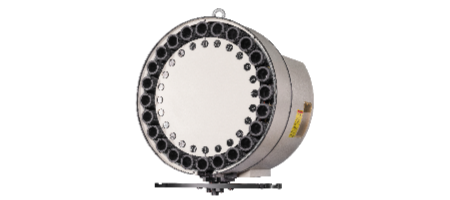

High-speed ATC

ATC driven by a cam motor during operation to the next tool position in advance to be ready for executing the tool changing command, minimizing the non-cutting time; a tool capacity of 24 tools {or 30 tools (optional)}, allowing for a wider variety of mac

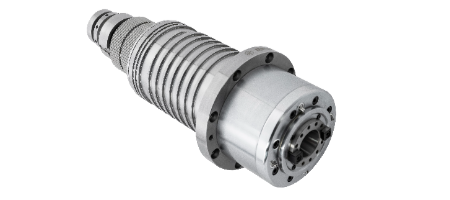

Spindle

Precision sleeve-type spindle, with main body assembled by an advanced precision P4 bearing, and with the four walls of the taper hole in the spindle bore thick and robust, minimizing vibration across a range of cutting speeds, and effectively improving t
