Horizontal X-axis

1500mm

Longitudinal Y-axis

800mm

Vertical Z-axis

700mm

Distance from spindle end face to worktable

150-850mm

Distance from spindle center to column rail surface

870mm

Worktable size

1700*800mm

T-slot quantity/size/spacing

5*18*140

Maximum loading capacity

1200kg

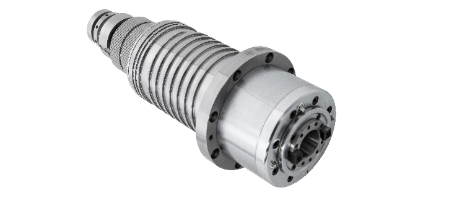

Spindle speed

50-6000rpm

Drive mode

Synchronous belt drive

Spindle motor torque (rated/maximum)

143/236Nm

Main motor power

15/18.5kw

X/Y/Z rapid traverse speed

20/20/16m/min

Cutting feed rate

1-10000mm/min

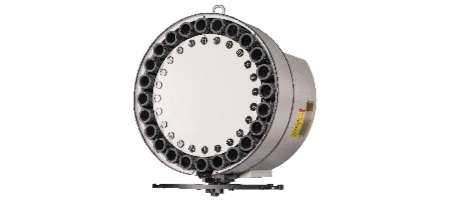

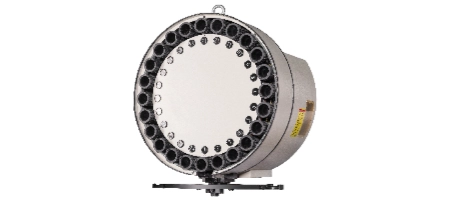

Tool magazine type

ATC tool magazine with 24 tools {30 tools}

Shank specification

BT-50

Positioning accuracy

0.012mm

Repeatability

0.005mm

Machine footprint and height

4000*3250*3610mm

Machine weight (apx.)

10400kg

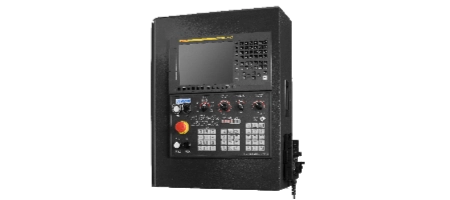

CNC system

FANUC 0iMF PLUS
