Horizontal X-axis

1500mm

Longitudinal Y-axis

700mm

Vertical Z-axis

700mm

Distance from spindle end face to worktable

130-830mm

Distance from spindle center to column rail surface

750mm

Worktable size

1600*700mm

T-slot quantity/size/spacing

5*18*125

Maximum loading capacity

1000kg

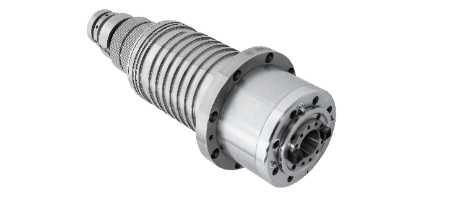

Spindle speed

50-8000rpm

Drive mode

Synchronous belt drive

Spindle motor torque (rated/maximum)

52.5/118Nm

Main motor power

11/15kw

X/Y/Z rapid traverse speed

24/24/20m/min

Cutting feed rate

1-8000mm/min

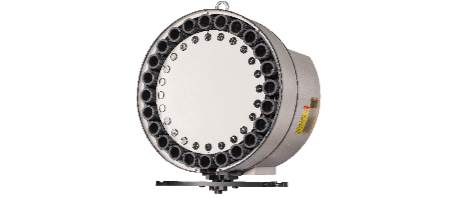

Tool magazine type

ATC tool magazine with 24 tools {30 tools}

Shank specification

BT-40

Positioning accuracy

0.01mm

Repeatability

0.005mm

Machine footprint and height

3700*2800*3300mm

Machine weight (apx.)

9000kg

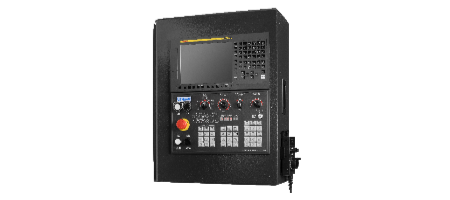

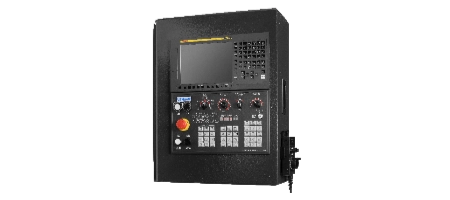

CNC system

FANUC 0iMF PLUS
