Vertical Machining Center EM600A

This series of machine tools, featuring high overall rigidity, convenient and flexible operation, and fully-enclosed protection, is suitable for machining box-type parts as well as various complex two-dimensional and three-dimensional molds

It is widely applied to the machining of parts and molds characterized by multiple processes, high precision and high efficiency in automotive, mold, and may be provided with a rotation axis to accommodate the machining

Consult immediately

Model Highlights

Rotary control panel

High-speed ATC

Spindle

Parameter Specifications

Item

Vertical Machining Center EM600A

Specifications

Travel

X axis

600mm

Y axis

400mm

Z axis

450mm

Spindle nose to table surface

150-600mm

Spindle center to column rail suiface

447mm
Worktable

Worktable size

700*420mm

T-slot quantity/size/spacing

4*14*84

Maximum loading capacity

350kg
Spindle

Spindle speed

50-10000rpm

Drive mode

Synchronous belt drive

Spindle motor torque (rated/maximum)

35.8/95.5Nm

Main motor power

7.5/11kw
Servo axis

X/Y/Z rapid traverse speed

42/42/48m/min

Cutting feed rate

1-10000mm/min
Tool magazine

Tool magazine type

ATC tool magazine with 24 tools

Shank specification

BT-40
Main accuracy

Positioning accuracy

0.008mm

Repeatability

0.004mm
Others

Machine footprint and height

2050*2280*2850mm

Machine weight (apx.)

3700kg

CNC system

FANUC 0iMF PLUS

Related recommendations

Horizontal Machining Center HM6300

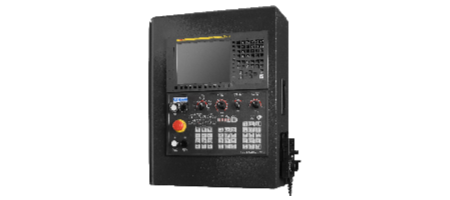

Rotary control panel

Rotary control panel with a rotation of 0-60 degrees for enhanced operation convenience and visibility.

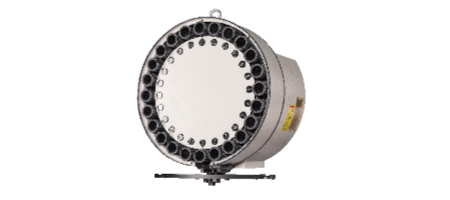

High-speed ATC

ATC driven by a cam motor during operation to the next tool position in advance to be ready for executing the tool changing command, minimizing the non-cutting time; a tool capacity of 24 tools {or 30 tools (optional)}, allowing for a wider variety of mac

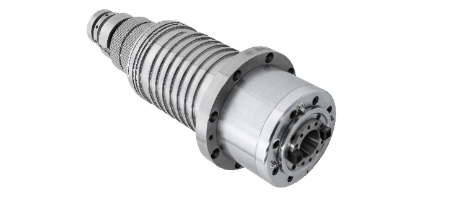

Spindle

Precision sleeve-type spindle, with main body assembled by an advanced precision P4 bearing, and with the four walls of the taper hole in the spindle bore thick and robust, minimizing vibration across a range of cutting speeds, and effectively improving t
